Performance
Type IP security camera
Placement supported Indoor
Connectivity technology Wired & Wireless
PTZ control (Pan/Tilt/Zoom)
Preset points
Wide Dynamic Range (WDR)
Certification EN 55032 Class A, EN 55024, EN 301489-1, EN 301489-3, EN 61000-6-1, EN 61000-6-2, EN 300220-1, EN 300220-2, EN 62368-1, EN 62479, IEC/EN 60529 IP51
Design
Form factor Dome
Mounting type Ceiling
Product colour Black
LED indicators
Housing material Plastic
Protection features Dust resistant, Water resistant
International Protection (IP) code IP51
Camera
Camera pan control
Camera tilt control
Minimum illumination 1.2 lx
Viewing angle, horizontal 71°
Viewing angle, vertical 40°
Tilt angle range 0 - 90°
Tilt speed 100 °/sec
Pan range -180 - 180°
Pan speed 100 °/sec
Camera shutter speed 1/16000 - 1 s
Image sensor
Sensor type CMOS
Number of sensors 1
Optical sensor size 25.4 / 4.85 mm (1 / 4.85 )
Progressive scan
Lens system
Number of lenses 1
Zoom capability
Optical zoom 5x
Digital zoom 10x
Auto focus
Maximum aperture number 2.5
Minimum aperture number 1.4
Focal length range (f-f) 2.2 - 11 mm
Video
Maximum resolution 1920 x 1080 pixels
Video compression formats H. 264
Supported graphics resolutions 320 x 180,1920 x 1080 (HD 1080)
Frame rate 30 fps
Video streaming
Image quality adjustment Brightness, Sharpness
Privacy masking
Text caption overlay
Bit rate control Variable Bit Rate (VBR)
Audio
Audio system 1-way
Audio formats supported ADPCM, G. 711, G. 726, LC-AAC, PCM
Built-in microphone
Audio detection
Network
Ethernet LAN
Wi-Fi
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols v
Quality of Service (QoS) support
Streaming method Multicast
Storage
Card reader integrated
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory 256 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Password protection
Video motion detection
IP address filtering
HTTPS encryption
Alert notification type E-mail
Management features
Behavior analysis Object removal detection
Power
Power source type PoE
Power consumption (max) 8 W
Power consumption (Power over Ethernet (PoE)) 4.8 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -30 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 130 mm
Depth 130 mm
Height 63 mm
Weight 375 g
Packaging content
Number of cameras 1
Mounting kit
Manual

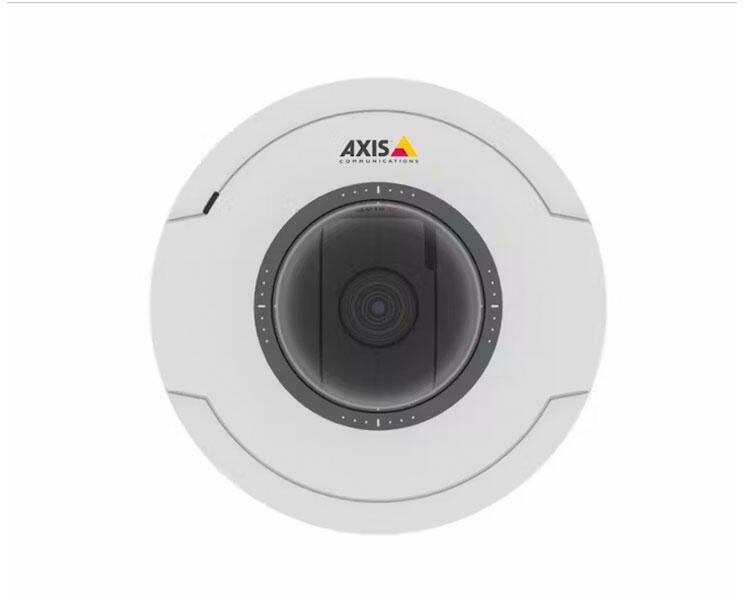

Denumiri similare la Camera IP Axis Communications M5065 (01107-002): M 5065 01107 002, M506501107002, M5065 (01107 002), M506501107-002, M 5065 (01107-002)
