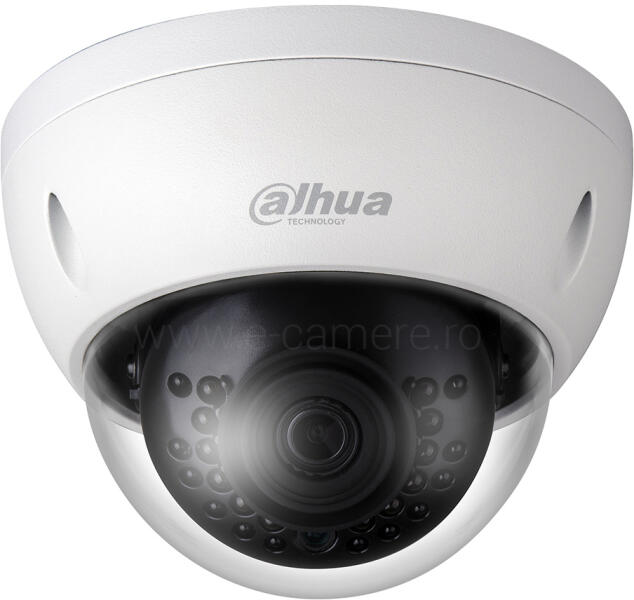

Camera IP Dome 2MP, Dahua IPC-HDBW1230E-S-0360B, 1/2.7 CMOS, ICR, H. 265+, 25/30fps@1080P, 3.6mm, IR 30m, IP67, IK10, PoE
Camera Dahua Dome IP IPC-HDBW1230E-S-0360B, 2MP, 1/2.7inch CMOS, ICR, H. 265-H. 264 dual-stream, 25/30fps@1080P(1920x1080), DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, Multiple network monitoring: Web viewer, CMS(DSS/PSS)-DMSS, lentila fixa 3.6mm, IR 30m, IP67, IK10, PoE, carcasa metal.
CMOS progresiv 1 / 2,7 2Megapixel
> Codificare dual-stream H. 265 si H. 264
> 25 / 30fps @ 1080P (1920x1080)
> DWDR, Zi / noapte (ICR), 3DNR, AWB, AGC, BLC
> Monitorizare retea multipla : Vizualizator web, CMS (DSS / PSS) si DMSS
> obiectiv fix de2,8mm (3,6 mm optional)
> Lungime maxima LED-uri IR 30m
> IP67, IK10, PoE
Specificatii camera:

Senzor de imagine
CMOS progresiv 1 / 2,7 2Megapixel

Pixeli eficienti
1920 (H) x1080 (V)

RAM / ROM
256 MB / 32 MB

Sistem de scanare
Progresist

Viteza de expunere electronica
Automat / Manual, 1/3 ~ 1 / 100000s

Iluminare minima
0.08Lux / F2.0 (Culoare, 1 / 3s, 30IRE)

0.3Lux / F2.0 (Culoare, 1 / 30s, 30IRE)

0Lux / F2.0 (IR activat)

Raport S / N
Mai mult de 50 dB

Distanta IR
Distanta de pana la 30m (98ft)

Control On / Off IR
Auto / Manual

LED-uri IR
24

Obiectiv

Tipul obiectivului
Fix

Tipul de montare
Board-in

Distanta focala
2,8 mm (3,6 mm optional)

Max. Deschidere
F2.0 / F2.0

Unghiul de vedere
H: 104 / 92 , V: 55 / 50

Control focalizare
Fix

Distanta de focalizare apropiata
0,6 m (0,9 m)

DORI Distanta
Obiectiv
Detectare
Observare
Recunoastere
Identificare

2,8 mm
40 (131ft)
16 (52ft)
8 (26ft)
4 (13ft)

3,6 mm
53 (174ft)
21 (69ft)
11 (36ft)
5 (16ft)

PTZ

Pan / Tilt Range
Pan: 0 ~ 355 ;Inclinare: 0 ~ 65 ;Rotatie: 0 ~ 355

Inteligenta

Declansator eveniment
Detectie miscare, manipulare video, schimbare scena, deconectare retea, conflict de adrese IP, acces ilegal, anomalie de stocare

IVS
Tripwire, Intrusion

Video

Comprimare
H. 265 / H. 264H / MJPEG (flux secundar)

Codec inteligent
Suport H. 265 + / H. 264 +

Capacitate de streaming
2 fluxuri

Rezolutie
1080P (1920 1080) / 1,3M (1280 960) /

720P (1280 720) / D1 (704 576/704 480) / VGA (640 480) / CIF (352 288/352 240)

Rata cadrelor
Flux principal: 1080P (1 ~ 25 / 30fps)

Sub Stream: D1 (1 ~ 25 / 30fps)

Controlul ratei de biti
CBR / VBR

Rata de biti
H. 265: 12K ~ 6400Kbps

H. 264: 32K ~ 10240Kbps

Zi noapte
Automat (ICR) / Color / B / W

Mod BLC
BLC / HLC / DWDR

Echilibru alb
Auto / Natural / Lampa de strada / Exterior / Manual

Obtine controlul
Auto / Manual

Reducerea zgomotului
DNR 3D

Detectarea miscarii
Off / On (4 zone, dreptunghi)

Regiune de interes
Off / On (4 zone)

Imagine electronica
A sustine

IR inteligent
A sustine

Zoom digital
16x

Flip
0 / 90 / 180 / 270

Oglinda
Off / On

Mascare de confidentialitate
Off / On (4 zone, dreptunghi)

Audio

Comprimare
N / A

Retea

Ethernet
RJ-45 (10 / 100Base-T)

Protocol
HTTP; HTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP;

NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP;

TLS

Interoperabilitate
Profil ONVIF S&G, API

Metoda de streaming
Unicast / Multicast

Max. Acces utilizator
10 utilizatori / 20 utilizatori

Depozitare Edge
NAS

PC local pentru inregistrare instantanee

Vizualizator web
IE, Chrome, Firefox, Safari

Software de management
Smart PSS, DSS, DMSS

Telefon inteligent
IOS, Android

General

Alimentare electrica
DC12V, PoE (802.3af) (Clasa 0)

Consum de energie



Denumiri similare la Camera IP Dahua IPC-HDBW1230E-S-0360B: IPC HDBW 1230 E S 0360 B, IPCHDBW1230ES0360B, IPC HDBW1230E S 0360B, IPC HDBW1230E-S-0360B, IPC-HD BW1230E-S-0360 B
