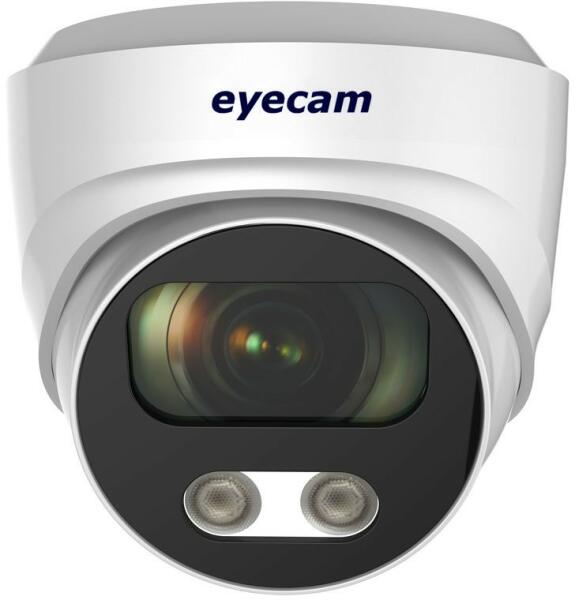

Camera supraveghere IP dome 4MP 3.6mm 25M Eyecam EC-1437
Compresie: H. 264/H. 264+/H. 265/H. 265+. Rezolutie: 4MP. Functie DWDR; filtru IR-Cut. Distanta IR: 25M, lentila 3.6mm. Analiza inteligenta: detectie intruziune.
Camera
Senzor imagine: 1/3" Senzor CMOS de inalta definitie
Rezolutie: 4MP
Pixeli efectivi: 2560(H)*1440(V)
Compresie: H. 264/H. 264+/H. 265/H. 265+/JPEG/AVI
Sistem TV: PAL/NTSC
Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Iluminare minima: 0.01Lux
S/N Ratio: 60dB
Sistem scanare: Progresiva
Iesire video: Retea
Lentila
Lentila: 3.6mm
Control focus: Fix
Tip lentila: Fixa
Iluminare pe timp de noapte
Leduri IR: 42 x 2PCS
Distanta IR: 25M
Status IR: Control automat
Stare IR: Smart / Manual / Programat
Retea
Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP , PPPoE, NTP, SMTP, UDP
ONVIF: Suporta ONVIF 2.4(Profil S/T/G)
P2P: da
Intarziere video: 0.3S (prin Lan)
Main Stream 1: 2688*1512@20fps
Main Stream 2: 2560*1440@30fps
Main Stream 3: 1920*1080@30fps / 1280*720@30fps
Sub Stream 1: 1280*720@30fps
Sub Stream 2: 720*480@30fps
IE Brower: IE8-11, Google Chrome, Firefox, Mac Safari
Smart Phone: iPhone, Android
Functii inteligente
Analiza inteligenta: Detectie intruziune (intrusion detection)
Specificatii camera
Zi/noapte: Color/ B&W (IR-CUT)
Configurare imagine: Saturatie/Luminozitate/Contrast /Mirror, 3D NR, White Balance, FLK (Flicker Control), HLC, distorsiune
Corridor Pattern: Da
Defog: Da
ROI: Da
BLC: Da
WDR: DWDR: 50dB
Detectie la miscare: Da
Privacy Masking: 3 zone rectangulare
Mod inregistrare: NVR/CMS/Web
Limbi disponibile: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech
Specificatii generale
Carcasa: Metal, rezistenta la intemperii
Filtru IR-Cut: Da
Temperatura operare: -20℃ ~ +60℃ RH95% Max
Alimentare: DC12V±10%, 700mA - nu este inclusa
Dimensiune: 96 x 91(H) mm
Greutate: 0.6kg Rezolutie: 4MP Tip lentila: Lentila fixa Distanta IR: 30m Tip carcasa: Dome Tip mediu: Interior


Denumiri similare la Camera IP eyecam EC-1437: EC 1437, EC1437
