Descarcati brosura HIKVISION DS-2CD1641FWD-IZ

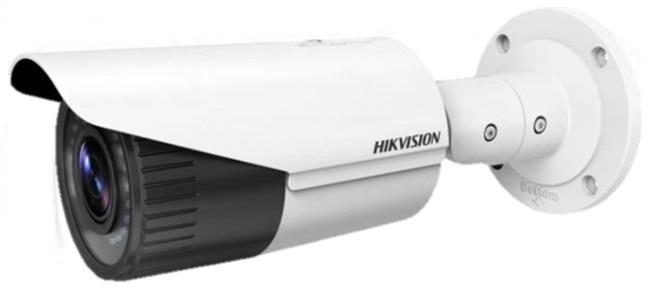

CAMERA IP HIKVISION EXTERIOR DS-2CD1641FWD-IZ 4MP POE

1/3" progressive scan CMOS

Up to 4.0 megapixel high resolution

2.8 mm to 12 mm motorized vari-focal lens

Up to 30 m IR range

Dual stream

120dB WDR (Wide Dynamic Range)

3D DNR (Digital Noise Reduction)

PoE (Power over Ethernet)

IP 67

Mobile monitoring via Hik-Connect or iVMS-4500

Specificatii tehnice:

Camera

Image Sensor 1/3" progressive scan CMOS

Min. Illumination Color: 0.01Lux @(F1.2, AGC ON), 0 Lux with IR

Shutter Speed 1/3s to 1/100,000 s, support slow shutter

Lens 2.8 mm to 12 mm @F1.4 , horizontal field of view: 108° to 31°

Lens Mount Φ14

Day &Night IR cut filter with auto switch

3-Axis Adjustment Pan: 0° to 355°, tilt: 0°to 100°, rotation:0° to 355°

DNR(Digital Noise Reduction) 3D DNR

WDR (Wide Dynamic Range) 120 dB

Compression Standard

Video Compression Main stream: H. 264+/H. 264

Sub stream: H. 264/ MJPEG

H. 264 Type Main profile/High profile

Video Bit Rate 32 Kbps to16 Mbps

Dual Stream Support


Max. Resolution 2688 × 1520

Main Stream

Max. Frame Rate

50Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720)

60Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 30fps @(1920×1080, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 25fps@(640 × 360, 352 × 288)

60Hz:30fps@(640 × 360, 352 × 240)

Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software

Day/Night Switch Support auto, scheduled

Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Network

Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR

Detections Motion detection

Alarms Video tampering, network disconnected, IP address conflicted, HDD full, HDD error

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,

NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Standard ONVIF(PROFILE S, PROFILE G), PSIA, CGI, ISAPI

General Function One-key rest, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

Video Output (Without -Z) 1Vp-p composite output(75/BNC)

Reset Support

General

Operating Conditions -30 °C to60°C (-22 °F to140°F), humidity: 95% or less (non-condensing)

Power Supply DC12V ± 25%, PoE (802.3af)

Power Consumption Max. 5.5 W/11 W (with -Z)

Ingress Protection IP67

IR Range Up to 30 m

Dimensions 91.6 mm ×105 mm ×294.5 mm (3.6"× 4.1"× 11.6")

Weight 1200 g (2.6 lb. )
Rezolutie: 4MP Tip lentila: Lentila varifocala Distanta IR: 30m Functie POE: Da Tip carcasa: Bullet Telecontrol / alarmare la distanta: 4MP Numar de familii: Lentila varifocala Functie foto: 30m Tip mediu: Exterior


Denumiri similare la Camera IP Hikvision DS-2CD1641FWD-IZ(2.8-12mm): DS 2 CD 1641 FWD IZ 2 8 12 mm, DS2CD1641FWDIZ2812mm, DS 2CD1641FWD IZ(2.8 12mm), DS-2CD1641FWD-IZ28-12mm, DS 2CD1641FWD-IZ(2.8-12mm), DS-2CD1641FWD-IZ(2.8-12 mm)
