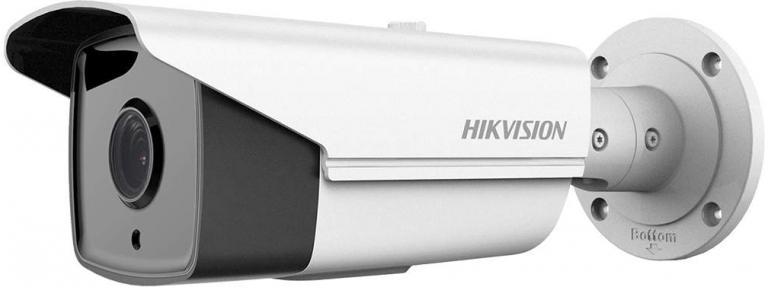

Camera supraveghere IP Hikvision DS-2CD2T83G0-I5 8MP

Camera

Image Sensor: 1/2.5" Progressive Scan CMOS

Signal System: PAL/NTSC

Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter time: 1/3 s to 1/100,000 s

Slow shutter: Support

Lens: 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°

Lens Mount: M12

Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Day& Night: IR cut filter with auto switch

Wide Dynamic Range: 120 dB

Digital noise reduction: 3D DNR

Focus: Fixed

Compression Standard

Video Compression: H. 265+/H. 265/H. 264+/H. 264/MJPEG

Video bit rate: 256Kbps~16Mbps

Triple Streams: Yes


Max. Image Resolution: 3840 × 2160

Frame Rate:

50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement: BLC/3D DNR/BLC

Image Settings: Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance

Target Cropping: No

ROI: 1 fixed region for main stream and sub-stream

Day/Night Switch: Day/Night/Auto/Schedule

Network

Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR

Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy

mask, Watermark, IP address filtering

System Compatibility: ONVIF (Profile S, Profile G), ISAPI

Interface

Communication Interface: 1 RJ45 10M / 100M Ethernet interface

On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button: Yes

Smart Feature-set

Behavior Analysis: Line crossing detection, intrusion detection

Line Crossing Detection: Cross a pre-defined virtual line

Intrusion Detection: Enter and loiter in a pre-defined virtual region

Recognition: Face Detection

General

Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) / Humidity 95% or less (non-condensing)

Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption: 12 VDC, 0.7 A, max. 7.5W / PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W

Weather Proof: IP67

IR Range: up to 50 m

Dimensions: Camera: Φ 104.8 × 299.7 mm (Φ 4.1" × 11.8")

Weight: Camera: 1200 g (2.7 lb. )
Rezolutie: Ultra HD 4K Tip lentila: Lentila fixa Distanta IR: 50m Accepta SD Card: Da Functie POE: Da Tip carcasa: Bullet Tip mediu: Exterior


Denumiri similare la Camera IP Hikvision DS-2CD2T83G0-I5(2.8mm): DS 2 CD 2 T 83 G 0 I 5 2 8 mm, DS2CD2T83G0I528mm, DS 2CD2T83G0 I5(2.8mm), DS-2CD2T83G0-I528mm, DS 2CD2T83G0-I5(2.8mm), DS-2CD2T83G0-I5(2.8 mm)
