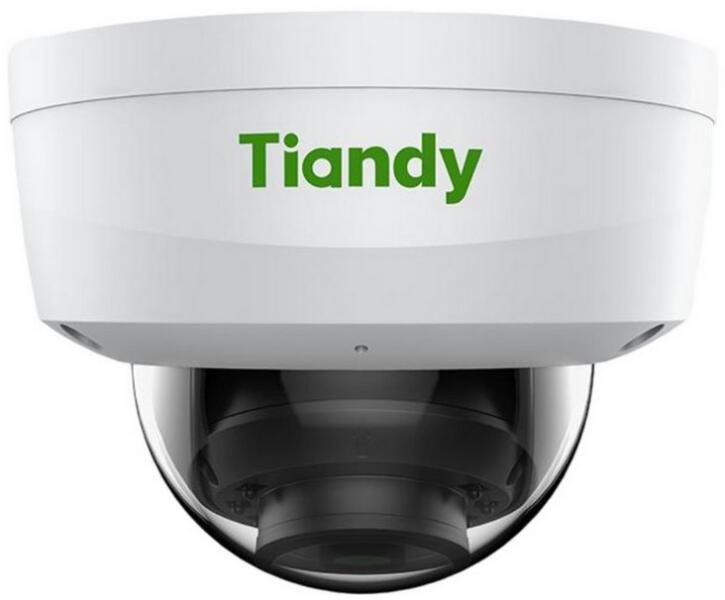

Specificatii tehnice camera IP Tiandy, 4K 8MP, lentila 2.8mm, iluminare duala, microfon, slot card micro SD, PoE, IP67, IK10:

Senzor imagine: 1/2.8" CMOS
Iluminare minima: Color: 0.002 Lux @(F1.6, AGC ON); B/W: 0 Lux cu IR
Timp expunere:  1s ~ 1/100000s
Day & Night: IR-cut filter cu auto switch (ICR)
Smart IR: Da
WDR: 120 dB
Raport S/N: >42 dB
Reglaj unghi: 0~330 (Pan); 0~75 (Tilt); 0~350 (Rotatie)
Tip lentila: Focala fixa
Distanta focala: 2.8 mm
Montura:  M12
Diafragma: F1.6 fixa
Camp vizual: 100.5 (H); 56.5 (V); 113 (D)
DORI: Detect: 77m; Observe: 30.5m; Recognize: 15.5m; Identify: 7.5m
IR LEDs: 8
Distanta IR: Pana la 30m
Lungime de unda: 850 nm
LED-uri albe: 8
Distanta lumina alba: 10m
Compresie video: S+265 / H. 265 / H. 264B / H. 264M / H. 264H / Motion JPEG
Bitrate video: 32 kbps ~ 16 Mbps
Compresie audio:  G. 711A, G. 711U, ADPCM_D, AAC_LC
Rata sampling audio: 8kHz / 32kHz / 48kHz
Rezolutie maxima: 8MP (3840×2160 @ 20fps)
Stream principal PAL : 20fps (3840×2160, 3072×2048); 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Stream principal NTSC: 20fps (3840×2160, 3072×2048); 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub stream PAL:  25fps (704×576, 704×288, 640×360, 352×288)
Sub stream NTSC:  30fps (704×480, 704×240, 640×360, 352×240)
Al treilea stream PAL: 25fps (704×576, 704×288, 352×288, 640×480)
Al treilea stream NTSC: 30fps (704×480, 704×240, 352×240, 640×480)
Functii imagine: BLC, HLC, 3D DNR, Defog, White Balance (Auto/Manual/Semi), ROI (8 zone), Corridor Mode, OSD, Picture Overlay, Privacy Mask (4 zone)
Alarme generale: Detectie miscare, Mask Alarm
Exceptii: Tensiune, HDD plin, eroare citire/scriere, IP/MAC Conflict, FTP/Neteork Error
Linkage: Email, Sunet, Inregistrare, Captura, Notificare catre centrul de supraveghere
Analiza video: Clasificare uman/vehicul, Tripwire, Perimetru
Scene: 8
ANR: Da
Protocoale suportate: RTSP, RTMP, HTTP/HTTPS, TCP, UDP, UPnP, ICMP, IGMP, SNMP v1/v2/v3, DHCP, DNS, DDNS, EasyDDNS, NTP, SMTP, TLS 1.2, SSL, 802.1X, QoS, IPv4/IPv6, PPPoE, SSH, Unicast, Multicast, RTCP, ARP, SRTP, FTP, SFTP
Compatibilitate:  P2P, ONVIF (Profile S/T/G/M), SDK, CGI, Milestone
Conexiuni remote: ≤2
Clienti suportati:  Easy7 VMS, EasyLive Plus
Web Browser:  IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Retea: 1×RJ45 (10/100 Base-T)
Audio: Microfon incorporat
Reset: Da, intern
Stocare locala:  microSD/microSDHC/microSDXC pana la 512GB
RTC: Da
Limbi suportate:  20 limbi (EN, ES, FR, DE, IT, RU etc. )
Temperatura lucru: -35℃ ~ +65℃
Umiditate lucru:  ≤95%RH
Temperatura stocare: -35℃ ~ +65℃
Umiditate stocare: 10% ~ 95%RH (fara condens)
Alimentare: DC12V ±25% (Max. 6W), PoE IEEE802.3af (Max. 7.5W)
Protectie: IP67, IK10, Surge 4000V, ESD 6000V
Dimensiuni: 120 × 120 × 90 mm
Dimensiuni pachet: 140 × 140 × 120 mm
Greutate: 0.58 kg

Descarcati fisa tehnica
